PE Buliding Plastic Board Extrusion Line , PE Plastic Board Production Machinery

PP / PE Buliding Plastic Board Extrusion Line , PE Plastic Board Production Machinery

Quick detail :

1 . Thickness:1-30mm

2 . Screw design: single screw

3 . Warranty: 1 year

Description:

1 . Appropriate single-screw extruder (exhaust or not) should be chosen on the basis of different materials. Specially designed screw and advanced temperature controlling system ensure the good plasticization, high output and stable extruding.

2 . Screen changer and mould: The quick screen changer of hydraulic system ensures the short course of screen changing without material-leakage. Reasonable structure of mould should be chosen in terms of material, whereas moulds of clothes-rack mode are widely accepted to regulate flow-distribution and guarantee even thickness of plates (sheets).

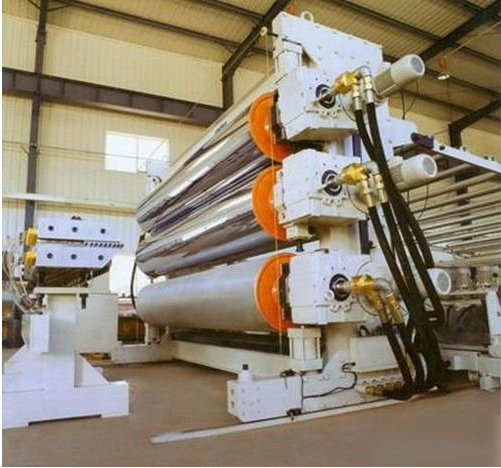

3 . Three-roller calendaring machine: Inclined and vertical three-roller calendaring machine should be chosen according to the thickness of the plates(sheets). Temperature controller operates separately and gap among the three rollers can be adjusted freely, and the central roller has special design of regulating angle. Both ensure the excellent calendaring effect and even thickness of plates (sheets). Bracket of cooling roller: Equipped with corresponding guide roller, the cooling effect is better. In addition, the edge-shearing device equipped can guarantee fixed width of plates (sheets) and quality of edge.

4 . Landscape orientation cutting machine: It is of length-fixed cutting with cutting precision less than 2mm and adopts alloy blade or rigid alloy saw bit to ensure the good cutting effect and constantly stable performance.

5 . The winder: It is of friction winder and other forms as well can be supplied according to customers' requirements.

Applications:

1 . good environmental performance and two processing properties, and can be processed into the turnover box, packing boxes, etc

2 . Widely used in electronics, electrical appliances, bags, machinery, postal, food, medicine, pesticide and advertisement and decoration, etc

3 . Thickness : 1 - 30mm width 3000mm(under)

Specifications:

Competitive Advantage:

1 . Tell us your request for the board,such as material and size,then we wil do the whole work to meet your needs.

2 . Many years experience

3 . Good plasticity
