PVC Building Template Foam Board Machine , PVC Semi Crust Foam Board Extruder
Introduction of pvc foam board machine:
PVC free foam board production line is designed to produce freely foam board, it has large production capacity, the maximum production capacity can reach 600 kg/h, high foaming rate, smooth & abrasion-resistance surface, the width of the board allow to reach 1830mm, the thickness allow to reach 3-30mm.
1. It has such advantages as rot prevention, non-deformation, non-shading, pest resistant, fire-proof, split proof, etc.
2. It can be processed by a sawing machine or a planning machine.
3. It is widely used in making rail, passages, stairs, outdoor desk and chair, flower frame, pools etc. in addition, it can be used for indoor plate decoration , kitchen cabinet board, tray etc.
Description of foam board production line:
1.This PVC free foaming board extrusion machine is composed of special twin-screw extruder, T-die head and downstream equipments. This machine has the features of high output, stable extrusion, high foaming, smooth and wearable surface etc. And also our company will supply the customer raw material formulation and whole processing technology.
2.SPECIFICATIONS:
Plate width: 1220-2050mm
Plate thickness: 1.5-20mm
3.1.PVC crust foamed plate surface hardness is very high, it is difficult to have Nick, is widely used in ambry, decorate, building, etc
PVC free foam board surface hardness, widely used in advertising hoardings, framed drawing board, screen printing, engraving, etc
Product features and processing performance :
PVC foam sheet, with sound insulation, sound-absorbing, heat insulation, thermal insulation performance, etc.
PVC foam board with flame retardant, fire can self-extinguishing security, safe to use
Series products are PVC foaming plates in the moistureproof, mouldproof, not bibulous performance, and the earthquake effect is good.
Applications:
1. field: decration board, building templete, windows,furnitures, desk and chair
2. product: Real estate, Road bridge building, Coal channel clapboard, War industry, Ship, building, Trains.
3. decoration
4. green environment protection, waterproof, damp proof, anti-corrosion, rot-resistence, ametabolic and good fire-retardant
5. Dimension(L*W*H): 22m*2.5m*2.5m
6. main export place: north America,africa, Europe, southeast asia, south America, etc
8. Material is 100% recycled.
Technical parameter of pvc foam board machine:
| Model | Skinning foaming plate | Half-skinning foaming plate |
| Production width | 700-1220mm | 1220-1600mm |
| Production thickness | 5-25mm | 5-18mm |
| Extruder model | 130/21 | 80/156 |
| Capacity(Max.) | 720kg/h | 400kg/h |
| Main motor power | 132kw | 75kw |
| test item | unit | testing result |
| performance density | g/cm3 | 0.5-0.8 |
| tensile strength | Mpa | 12-20 |
| bending strength | Mpa | 12-18 |
| modulus of elasticity in static bending | Mpa | 800-900 |
| Impact strength | Kj/m2 | 8-15 |
Advatnages:
1.Waterproof, flame retardant, resistance to acid and alkali, moth-proofing, qualitative light, heat preservation, sound insulation, shock absorption properties
2. And the same processing timber, and processing performance is much better than wood
3.It Is a ideal substitute for wood, aluminum, composite plate
4.Knot pedal very smooth surface, high hardness, not easy scratches, is often used to make ambry, furniture, etc

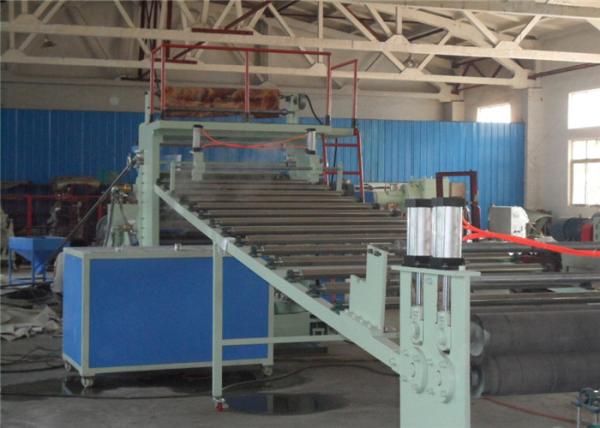

Machine display:
